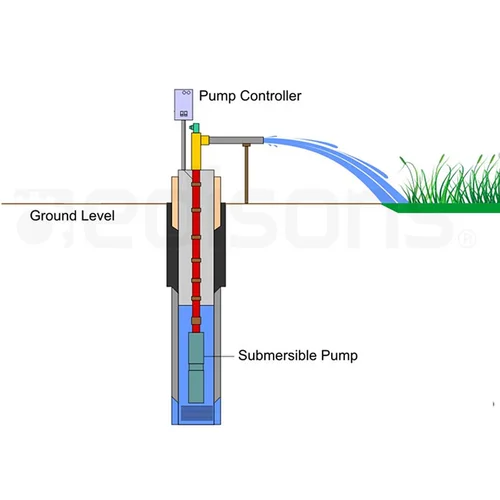

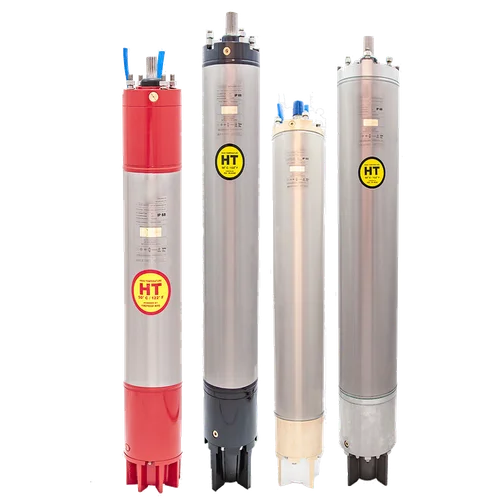

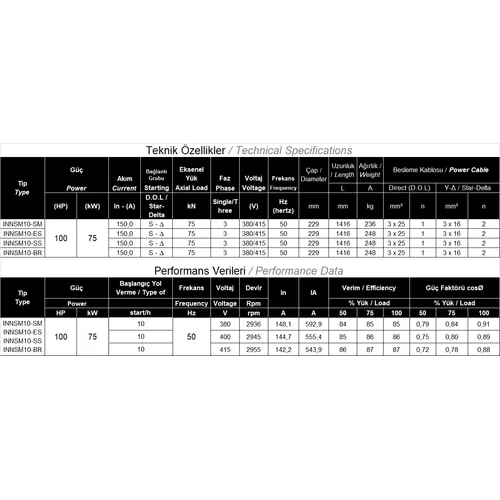

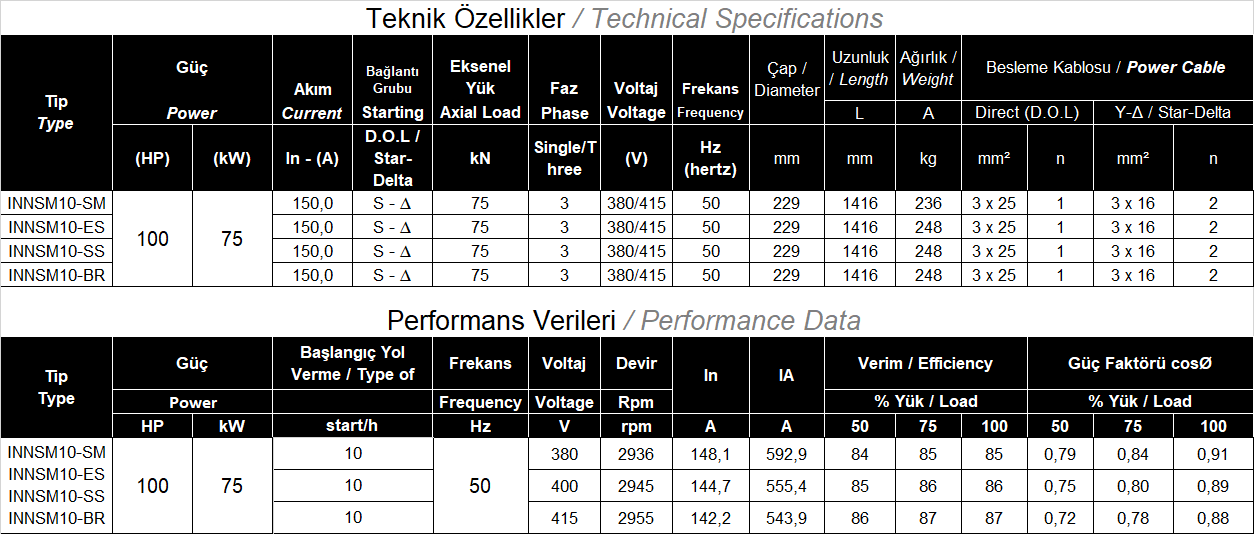

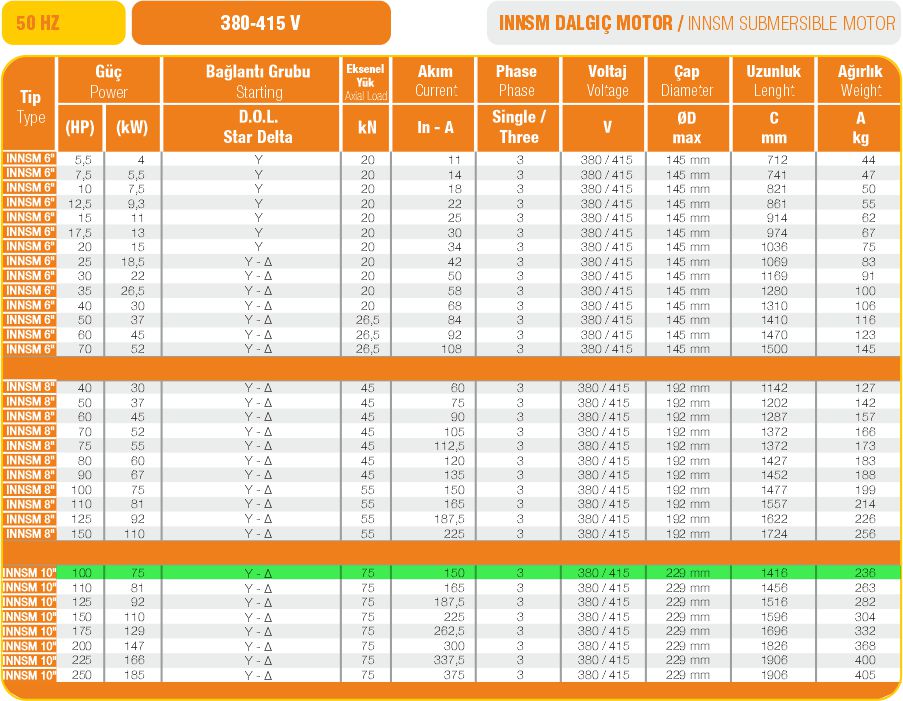

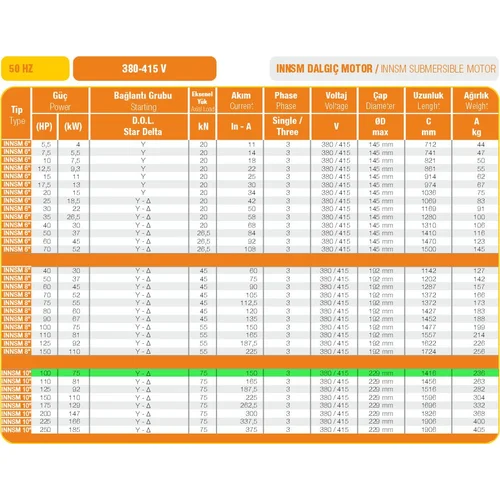

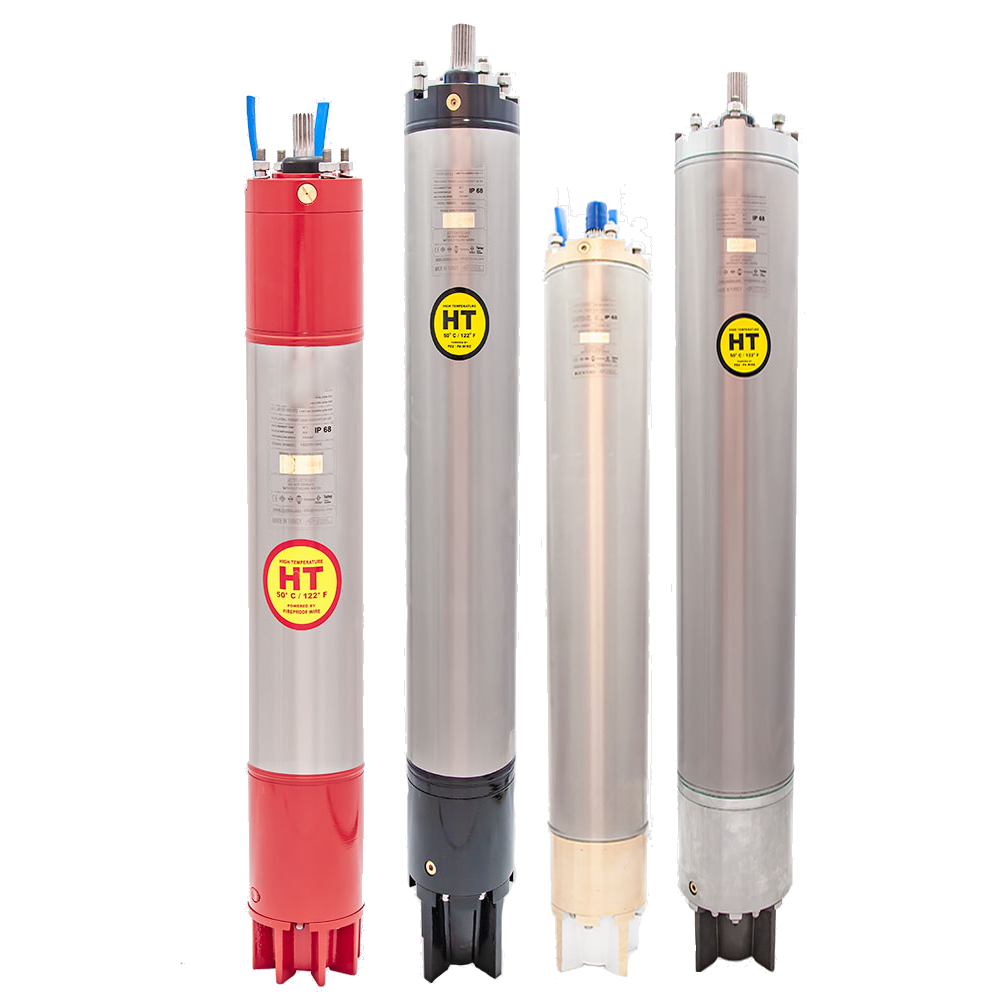

Submersible Pump Motor 10-inch 100HP (75kW) Technical Specifications ● Insulation Class: F ● Frequency: 50Hz or 60 Hz ● Outer Diameter: 229 mm ● Motor Power (Horsepower): 100 HP ● Motor Power (Electrical): 75 kW ● Axial Load Capacity: 75 kN ● Compliant with 10" NEMA standards ● Starting Method: Star-Delta (Y/Δ) ● Supply Voltage: ~3, 380/415 V (-6% to +10%) ● Motor Protection: IP 68 (Mechanical Seal) ● Submergence Depth: Standard Upper Limit ● Operating Ambient Temperature: Max. 30ºC (Optional: up to +70ºC) ● Minimum cooling water velocity around the motor: 16 cm/sec APPLICATION AREAS Municipal Water Networks Drinking Water Wells Agricultural Irrigation Geothermal Wells Seawater Transport FEATURES Provides cooling and lubrication directly via the water being pumped, without the need for a separate cooling unit Motor mounting flange and shaft end comply with NEMA standards Motor housing pipe is made of AISI 304 stainless steel; the motor shaft is made of 420 stainless steel External motor components are available in cast iron (GG25), stainless steel (SS), or cast bronze (CuSn) Motors are equipped with standard steel mechanical seals
Submersible Pump Motor 10 inch 100HP (75KW) Technicial Specifications ● Class: F ● Frequency: 50 Hz. ● Outer Diameter: 229 mm ● Motor Power Range: 100 HP - 350 HP ● Axial load carrying capacity: 75 kN ● Based on 10" NEMA standards ● Starting : S/M ● Supply voltage : ~3, 380/415 V (-6%+10%) ● Motor protection: IP 68 (Mechanical Seal) ● Immersion Depth: Standard Upper Limit ● Working ambient temperature : Max. 30º C ● The coolant velocity pass
A passport has not yet been published for this product.
Submersible Pump Motor 10 inch 100HP (75KW)
