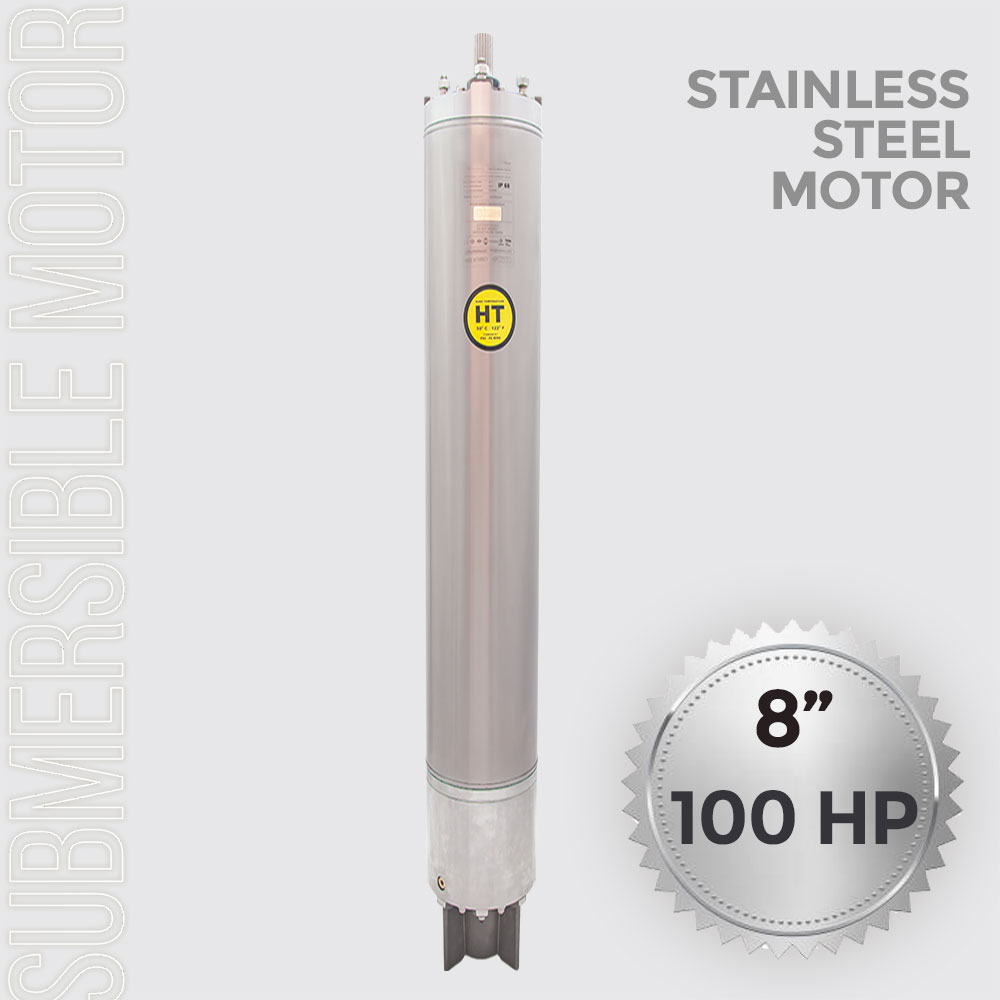

Submersible Pump Motor 8 inch 100HP (75KW) Technicial Specifications ● Class: F ● Frequency: 50 Hz. ● Outer Diameter: 192 mm ● Motor Power Range: 40 HP - 150 HP ● Axial load carrying capacity: 40HP-90HP motors and 45 kN 100HP-150HP motors 55 kN ● Based on 8" NEMA standards ● Starting : S/M ● Supply voltage : ~3, 380/415 V (-6%+10%) ● Motor protection: IP 68 (Mechanical Seal) ● Immersion Depth: Standard Upper Limit ● Working ambient temperature : Max. 30º C ● The coolant velocity passing around the engine is minimum 16 cm/sec. Usage Areas City Networks Drinking Water Wells Agricultural watering Geothermal Wells Seawater Transport FEATURES Provides cooling and lubrication with direct water without a cooling unit Motor mounting flange and shaft end conform to NEMA standard The motor body tube is AISI 304 motor shaft 420 stainless steel. The motors are standard steel sealed. - - - - - - - - -
No certificates have been added to this product yet.
Submersible Pump Motor 8 inch 100HP (75KW) Technicial Specifications ● Class: F ● Frequency: 50 Hz. ● Outer Diameter: 192 mm ● Motor Power Range: 40 HP - 150 HP ● Axial load carrying capacity: 40HP-90HP motors and 45 kN 100HP-150HP motors 55 kN ● Based on 8" NEMA standards ● Starting : S/M ● Supply voltage : ~3, 380/415 V (-6%+10%) ● Motor protection: IP 68 (Mechanical Seal) ● Immersion Depth: Standard Upper Limit ● Working ambient temperature :
A passport has not yet been published for this product.
Submersible Pump Motor 8 inch 100HP (75KW)
