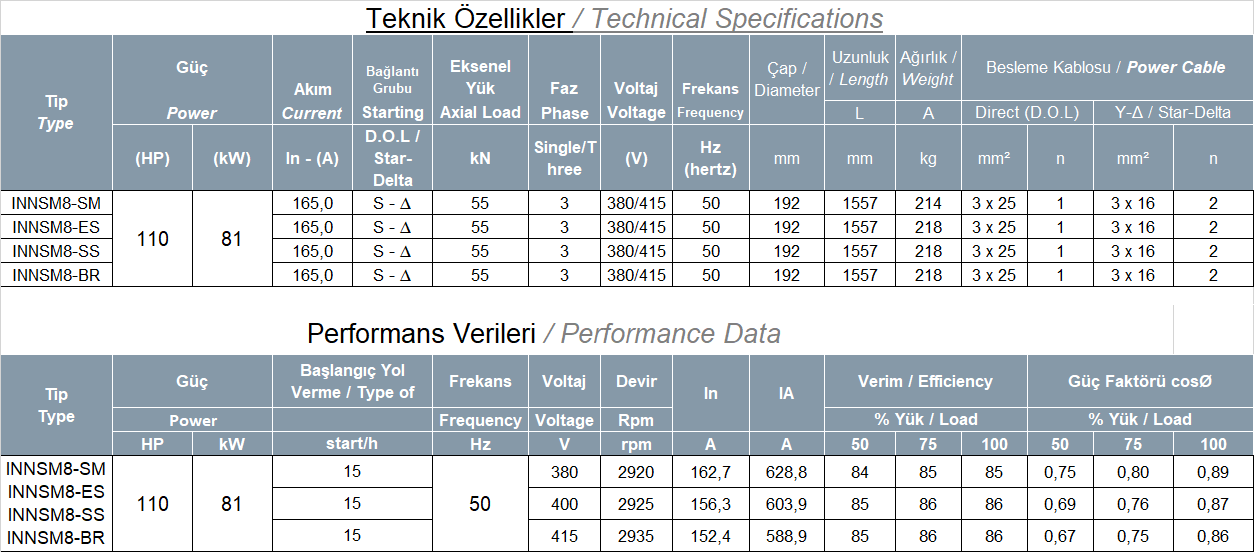

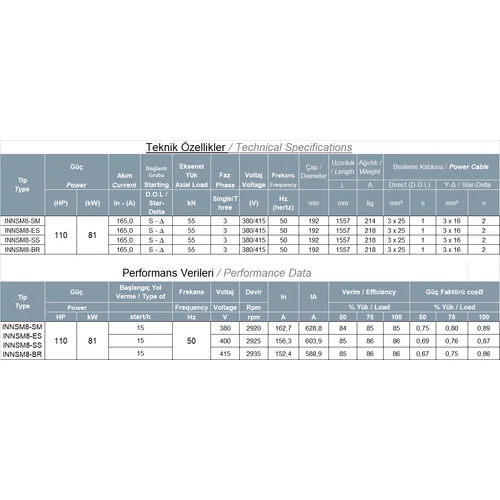

Submersible Pump Motor 8-inch 110 HP (81 kW) Technical Specifications ● Insulation Class: F ● Frequency: 50 Hz or 60 Hz ● Outer Diameter: 192 mm ● Motor Power (Horsepower): 110 HP ● Motor Power (Electrical): 81 kW ● Axial Load Capacity: 55 kN ● Compliant with 8-inch NEMA (National Electrical Manufacturers Association) standards ● Starting Method: Direct-on-line (DOL) and Star-Delta (Y/Δ) ● Supply Voltage: ~3-phase, 380/415 V (-6% to +10%) ● Motor Protection: IP 68 (Mechanical Seal) ● Submergence Depth: Standard Upper Limit ● Operating Ambient Temperature: Max. 30°C (Optional: up to +70°C) ● Minimum cooling water velocity around the motor: 16 cm/sec APPLICATION AREAS Municipal Water Networks Drinking Water Wells Agricultural Irrigation Geothermal Wells Seawater Transport
Submersible Pump Motor 8 inch 110HP (81KW) Technical Specifications Class: F ● Frequency: 50 Hz ● Outer diameter: 192 mm ● Motor Power Range: 40 HP - 150 HP ● Axial load carrying capacity: 55 kN ● Complies with 8 inch NEMA standards ● Starting: Direct and Y/D. ● Supply voltage: ~3, 380/415 V (-6%+10%) ● Motor protection: IP 68 (Mechanical Seal) ● Immersion Depth: Standard Upper Limit ● Operating ambient temperature: Max. 30º C (+70º C Optional) ● Minimum cooling water flow rate around the motor: 16 cm/s
A passport has not yet been published for this product.
8 Inch 110 HP (81 kW) Submersible Motor | INNTURK
