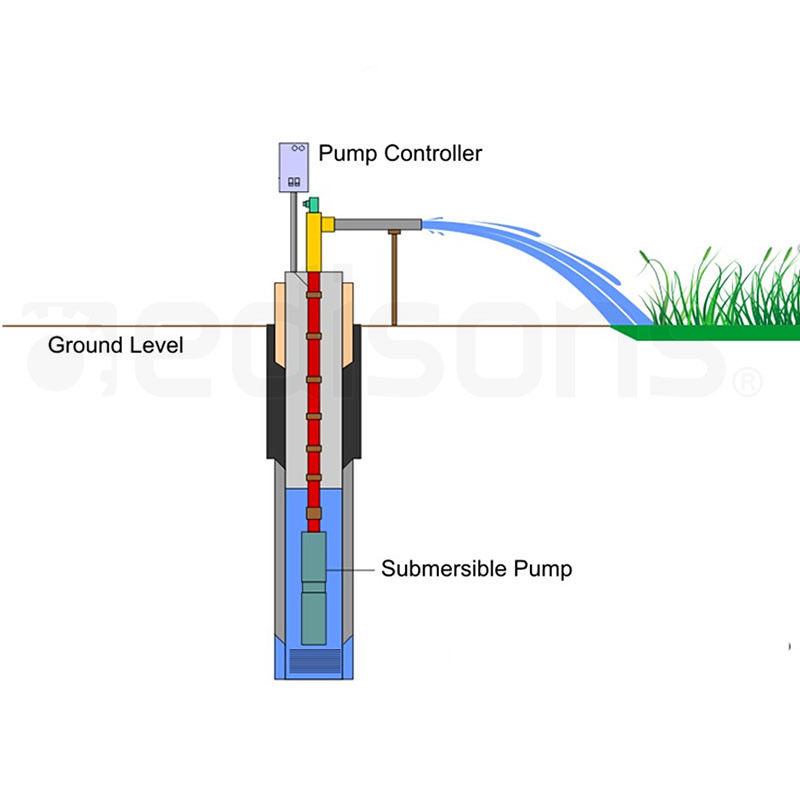

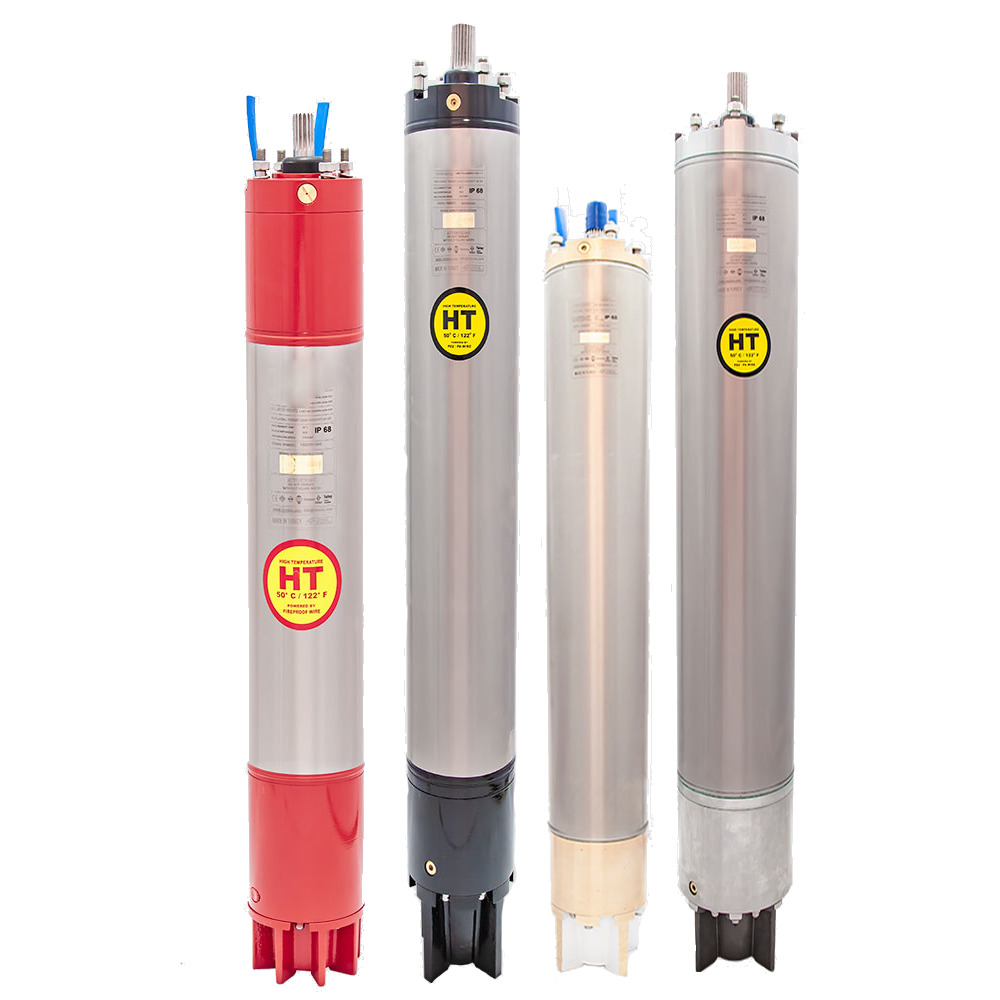

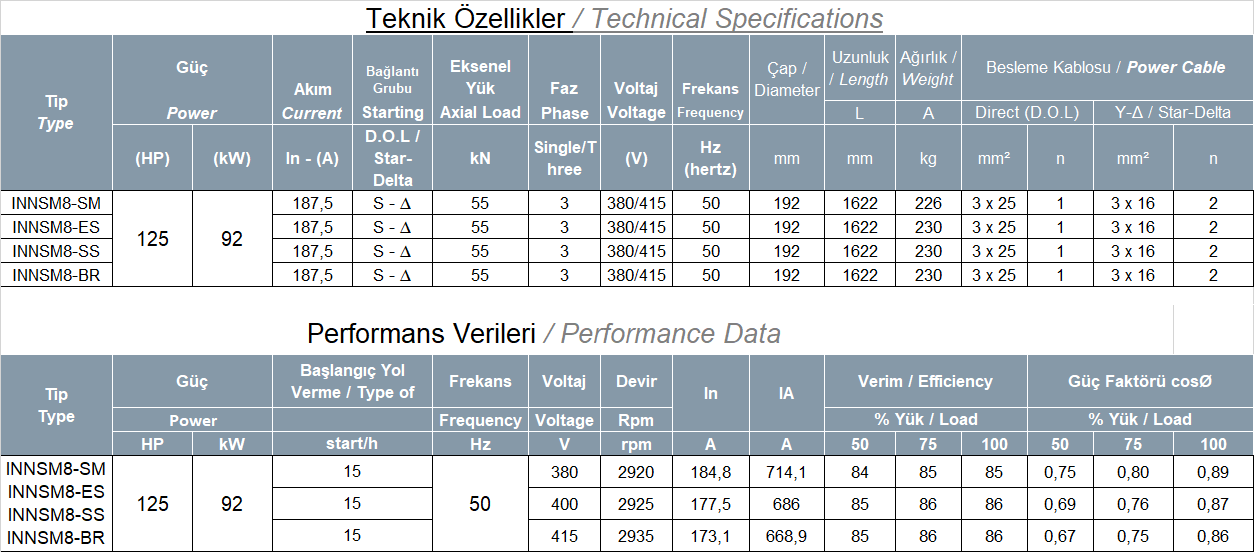

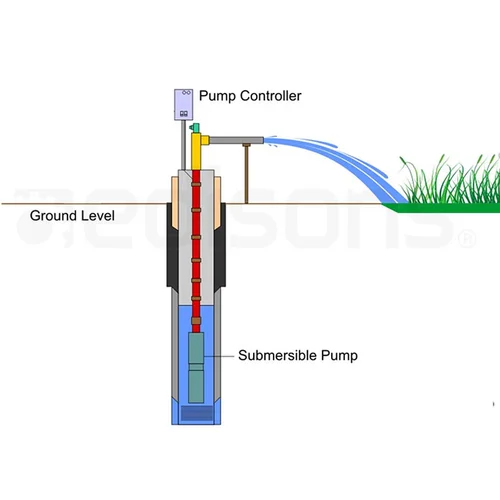

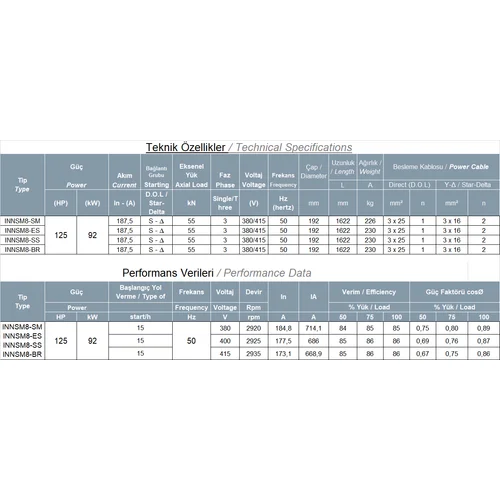

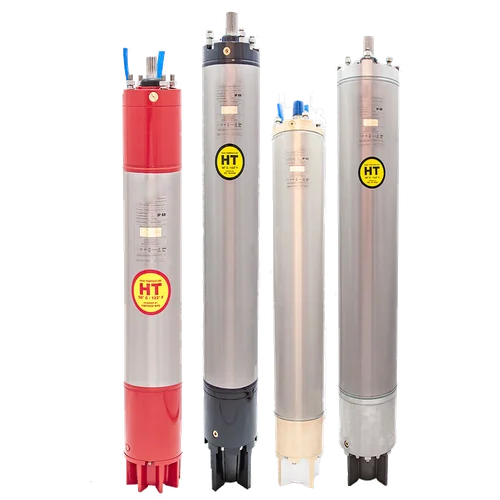

Submersible Pump Motor 8-inch 125 HP (92 kW) Technical Specifications ● Insulation Class: F ● Frequency: 50 Hz or 60 Hz ● Outer Diameter: 192 mm ● Motor Power (Horsepower): 125 HP ● Motor Power (Electrical): 92 kW ● Axial Load Capacity: 55 kN ● Compliant with 8-inch NEMA (National Electrical Manufacturers Association) standards ● Starting Method: Direct-on-line (DOL) and Star-Delta (Y/Δ) ● Supply Voltage: ~3-phase, 380/415 V (-6% to +10%) ● Motor Protection: IP 68 (Mechanical Seal) ● Submergence Depth: Standard Upper Limit ● Operating Ambient Temperature: Max. 30°C (Optional: up to +70°C) ● Minimum cooling water velocity around the motor: 16 cm/sec AREAS OF USE Municipal Water Networks Drinking Water Wells Agricultural Irrigation Geothermal Wells Seawater Transport FEATURES Provides cooling and lubrication directly via the water being pumped, without the need for a separate cooling unit Motor mounting flange and shaft end comply with NEMA standards Motor housing is made of AISI 304 stainless steel; the motor shaft is made of 420 stainless steel External motor components are available in cast iron (GG25), stainless steel (SS), or cast bronze (CuSn) Motors are equipped with standard steel mechanical seals
Submersible Pump Motor 8 inch 125HP (92KW) Technical Specifications Class: F ● Frequency: 50 Hz ● Outer diameter: 192 mm ● Motor Power Range: 40 HP - 150 HP ● Axial load carrying capacity: 55 kN ● Compliant with 8 inch NEMA standards ● Starting: Direct and Y/Δ ● Supply voltage: ~3, 380/415 V (-6%+10%) ● Motor protection: IP 68 (Mechanical Seal) ● Immersion Depth: Standard Upper Limit ● Operating environment temperature: Max. 30º C (+70º C Optional) ● Minimum cooling water speed around the motor: 16 cm/s
A passport has not yet been published for this product.
