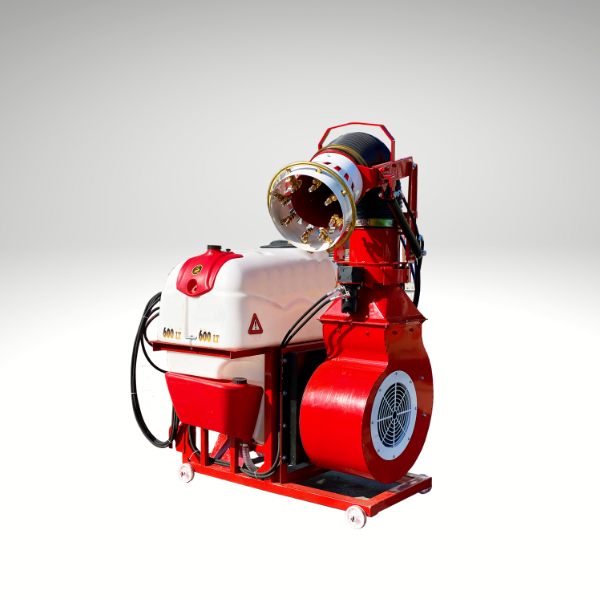

Mounted Type Robotic Turbo Atomizer
Model: INNTM-SCR-MS
Fertilization and Plant Protection
Mounted Type Robotic Turbo Atomizer
✧ The movement of the propeller in the fan system is taken from the 2-speed stage gearbox. Additionally, we have also models that take their motion from a single speed stage belt and pulley.
✧ Right or left side spraying can be done with the control (regulator) that can be mounted inside the tractor.
Technical Details
| CODE | TANK LITER(lt) | PUMP MODEL | PUMP FLOW(1/MIN) | PUMP PRESSURE(BAR) | NOZZLE TYPE | NOZZLE NUMBER | FAN TYPE | FAN DIAMETER(cm) | AIR FLOW(m3/H) | WORKING CYCLE(Rpm/min) | WEIGHT(kg) | WIDTH(mm) | LENGHT(mm) | HEIGHT(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCORPION | 600 | AG123 | 105-123 | 40-50 | BRASS STOPPER NOZZLE | 10 | STANDART | 65 | 54000 | 540 | 345-350KG | 1100 | 1265 | 1420 |
| SCORPION | 800 | AG123 | 105-123 | 40-50 | BRASS STOPPER NOZZLE | 10 | STANDART | 65 | 54000 | 540 | 385-390KG | 1100 | 1265 | 1600 |
| SCORPION | 1000 | AG123 | 105-123 | 40-50 | BRASS STOPPER NOZZLE | 10 | STANDART | 75 | 66000 | 540 | 485-490KG | 950 | 1500 | 1800 |
