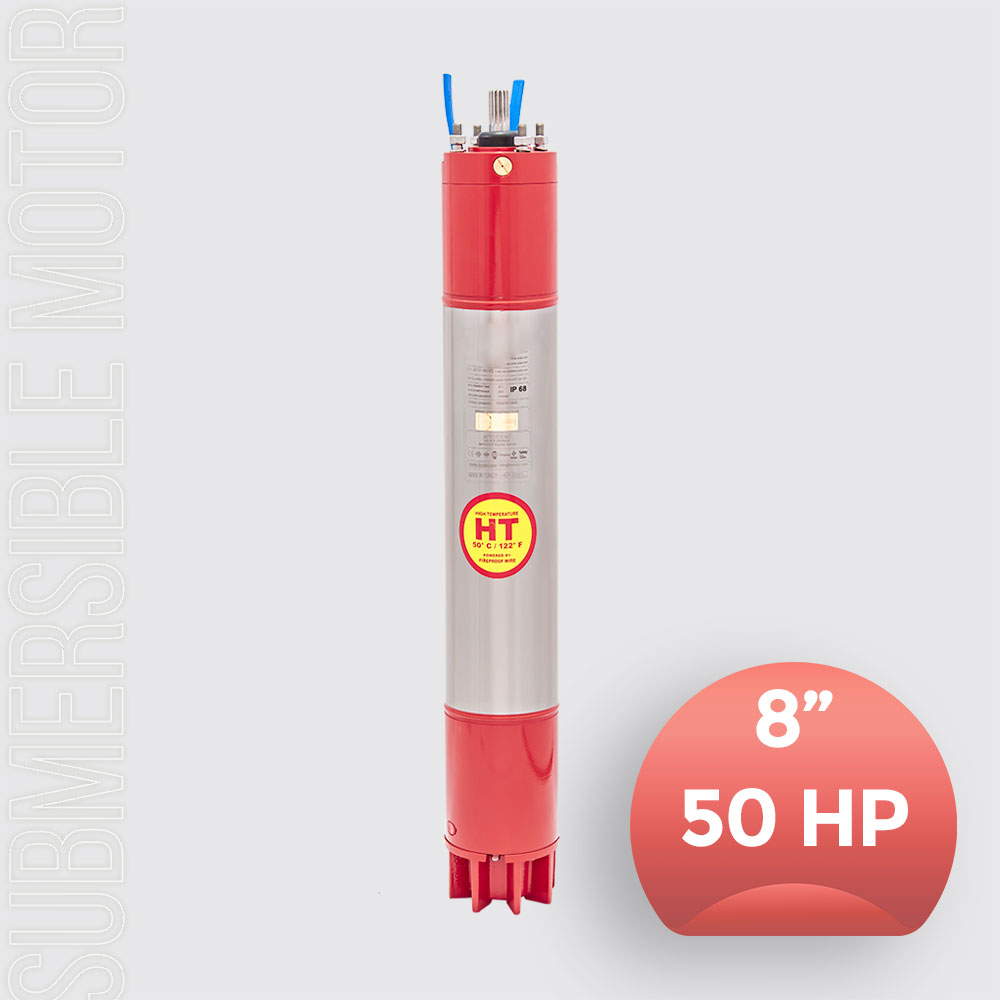

Submersible Pump Motor 8 inch 50HP (37KW)

Submersible Pump Motor 8 inch 50HP (37KW)

Technicial Specifications

● Class: F

● Frequency: 50 Hz.

● Outer Diameter: 192 mm

● Motor Power Range: 40 HP - 150 HP

● Axial load carrying capacity: 40HP-90HP motors and 45 kN 100HP-150HP motors 55 kN

● Based on 8" NEMA standards

● Starting : S/M

● Supply voltage : ~3, 380/415 V (-6%+10%)

● Motor protection: IP 68 (Mechanical Seal)

● Immersion Depth: Standard Upper Limit

● Working ambient temperature : Max. 30º C

● The coolant velocity passing around the engine is minimum 16 cm/sec.

Usage Areas

City Networks

Drinking Water Wells

Agricultural watering

Geothermal Wells

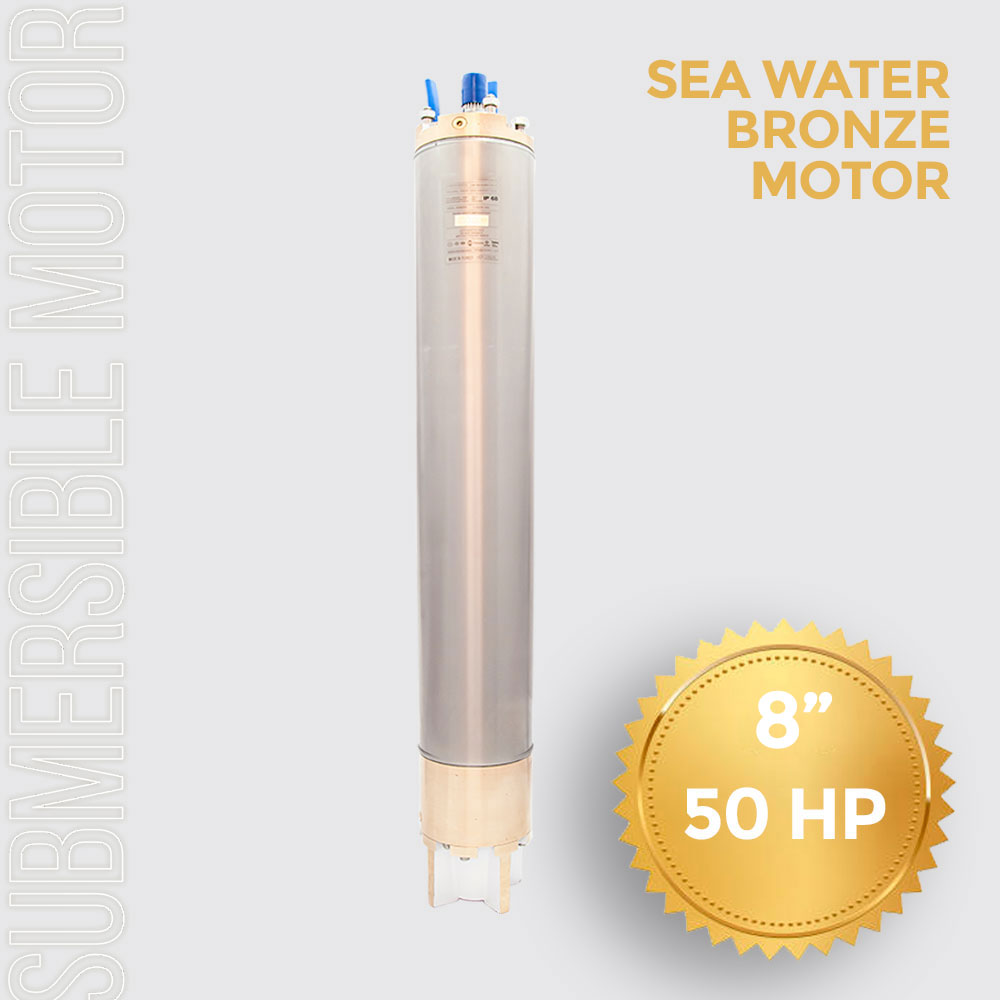

Seawater Transport

FEATURES

Provides cooling and lubrication with direct water without a cooling unit

Motor mounting flange and shaft end conform to NEMA standard

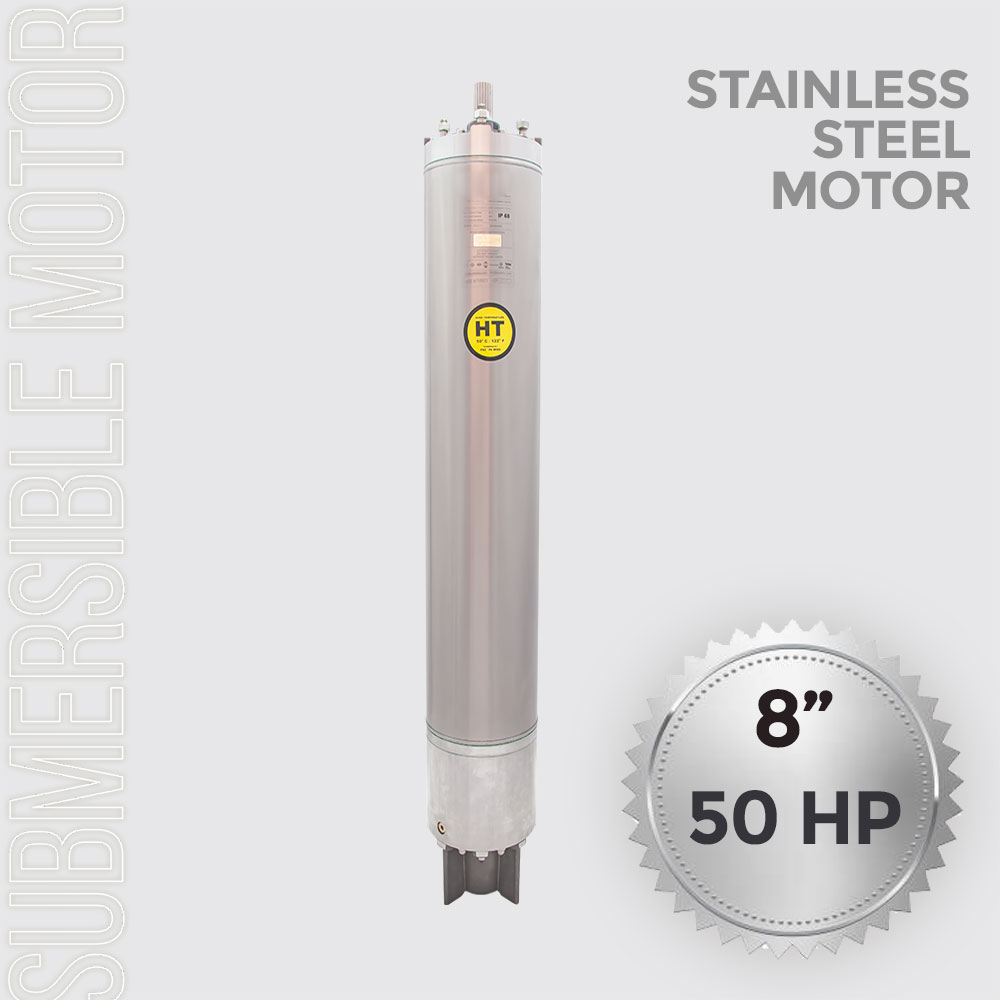

The motor body tube is AISI 304, motor shaft AISI 420 stainless steel.

The motors are standard steel sealed.

-

-
