Submersible Pump Motor 6 inch 5.5HP (4KW)

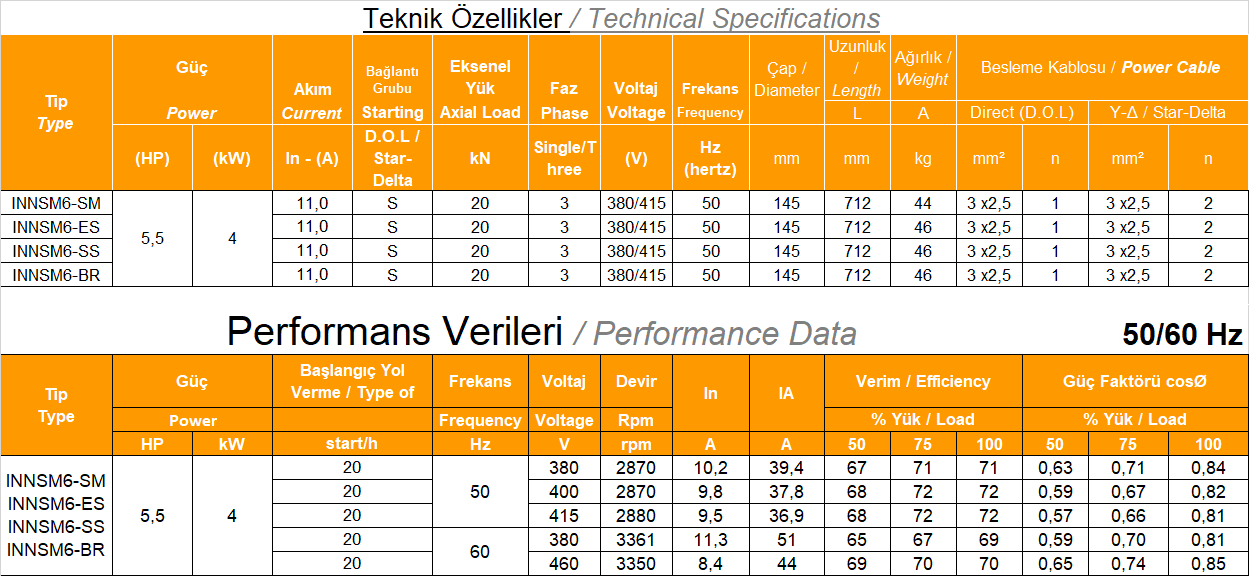

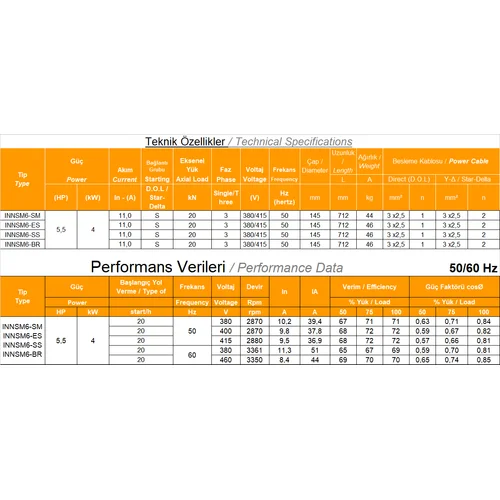

Technicial Specifications

● Class: F

● Frequency: 50 Hz

● Outer diameter: 141 mm

● Engine Power Range: 5.5 HP - 60 HP

● Axial load carrying capacity: 20 kN in motors between 5.5-30 HP, 26.5 kN in motors between 35-70 HP

● Complies with 6" NEMA (National Electrical Manufactures Association) standards

● Starting : Direct and Y/M.

● Supply voltage : ~3, 380/415 V (-6%+10%)

● Motor protection: IP 68 (Mechanical Seal)

● Immersion Depth: Standard Upper Limit

● Working ambient temperature : Max. 30º C

● The coolant velocity passing around the engine is minimum 16 cm/sec.

usage areas

City Networks

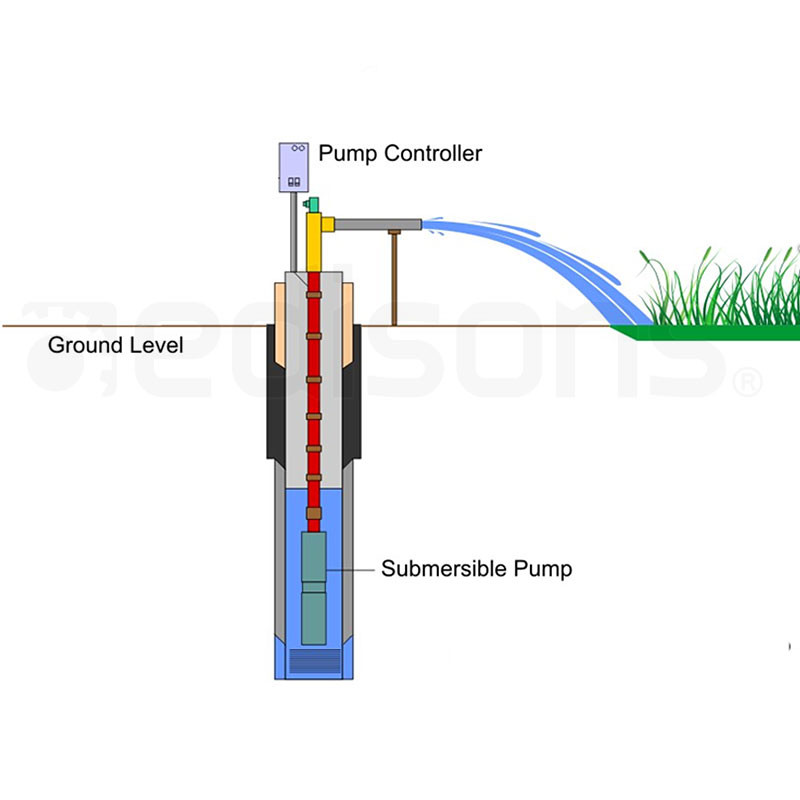

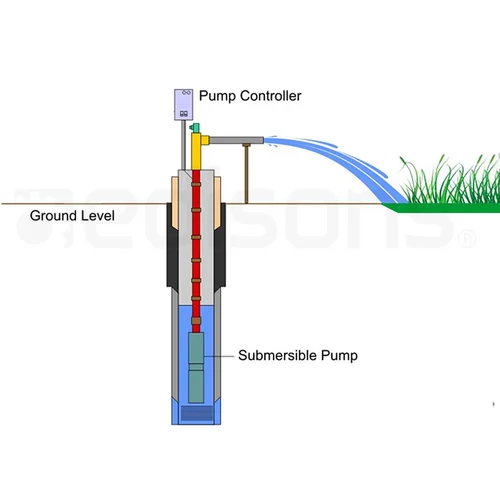

Drinking Water Wells

Agricultural watering

Geothermal Wells

Seawater Transport

FEATURES

Provides cooling and lubrication with direct water without a cooling unit

Motor mounting flange and shaft end conform to NEMA standard

The motor body tube is AISI 304 motor shaft 420 stainless steel.

The motors are standard steel seale
